VMP4G

Sensibly equivalent^¶ to:

CV1169 CV3785 CV3786 NR45

See also:

CV1169 short entry - VMP4G and W31 Advert

Extras ▼

Osram Valves Donated by Val Dawe Other VMP4G exhibits

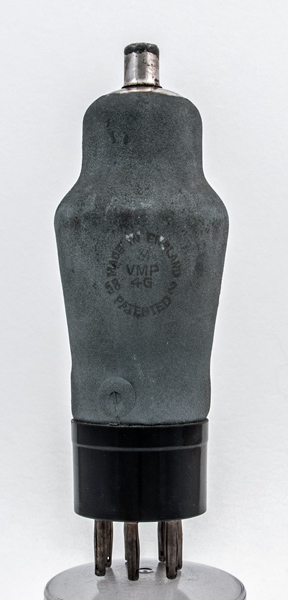

The VMP4G is a screened variable &MU; RF amplifier pentode for use in broadcast superhet receivers.

The VMP4 and VMP4K were introduced in 1933/4. This improved version the VMP4G was introduced in 1935 as a glass enveloped version when the Catkin valves were phased out.

See also VMP4G with most of the external metal screen missing.

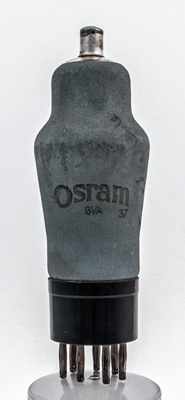

The printed Osram branding on the zinc external screening paint.

The classic envelope is 45 mm in diameter, and excluding the B7 base pins is 120 mm tall.

References: Data-sheet & ¹⁰⁴³. Type VMP4G was first introduced in 1935. See also 1935 adverts.

Pin Connections

B7	1	2	3	4	5	6	7	tc
	m	g1	g3	h	h	k	g2	a

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	gm
	4.0	1.0	250	100	-2	8.0	5.0	2.7

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated August 29, 2018.
