U10

Sensibly equivalent to:
1821 506BU CV1443 DW2 R1 UU5

Extras ▼

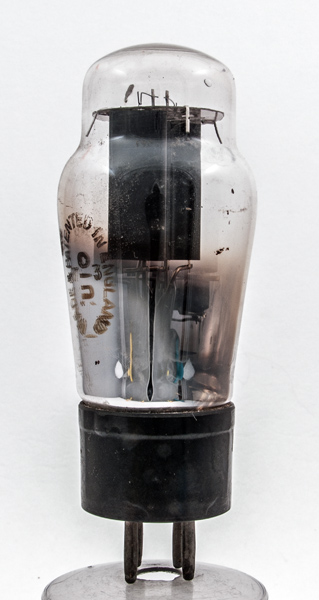

The U10 is a directly heated full wave rectifier.
The maximum reservoir capacitor is not quoted, but at 60 mA maximum output current the U10 was clearly designed for broadcast radio reception in 1930s all mains sets. The 4.0 Volt heater is characteristic of the 1930s British heater standard.

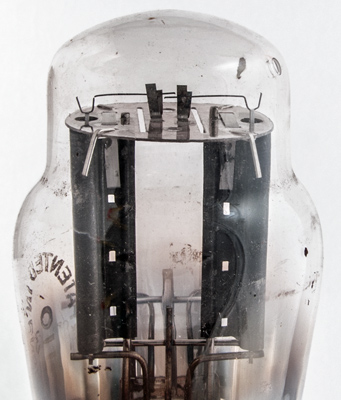

The twin anodes are stitched together.
The top mica reveals that the cathode/ filament is an oxide coated ribbon held tight by a tension spring. Our other U10 has heated cathode tubes with the heater strapped to the cathode.

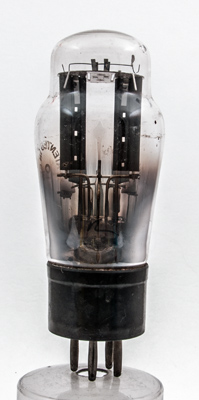

The classic envelope is 45 mm in diameter and, excluding the B4 base pins, is 104 mm tall.
References: Data-sheet, 1040, 3002 & 1043. Type U10 was first introduced in 1930. See also 1930 adverts.



Pin Connections
B4
1
2
3
4
a(1)
a(2)
f
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
1.0
250
60
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 28, 2015.
