6C6

Sensibly equivalent^¶ to:

CV585

Extras ▼

National Union Valves from David Martin Other 6C6 exhibits

The data sheet says the 6C6 design is very close to the 6J7G with the exception of the inter electrode capacitances. The 6C6 is a general purpose amplifier valve but the close similarities with the 6J7 indicate a good linear characteristic and good suitability for early stage audio amplification.

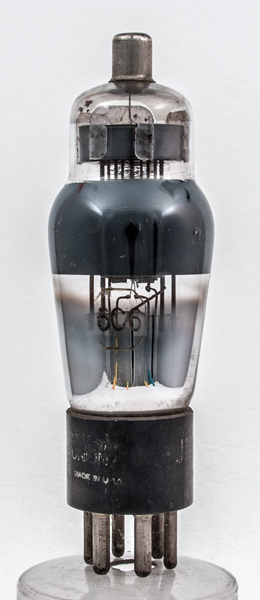

The base has the makers name - National Union - printed on it and somewhat smudged.

The glass at the top of the envelope distorts the only view of the grids.

The classic envelope is 38 mm in diameter, and excluding the UX6 base pins is 108 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³. Type 6C6 was first introduced in 1936. See also 1936 adverts.

Pin Connections

UX6	1	2	3	4	5	6	tc
	h	a	g2	nc	k	h	g1

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	μ
	6.3	0.3	250	250	-0	2.0	0.5	1.0M	1.225	20

Thanks to Frank Philipse for supplying the above PDF datasheet.
