The Red Top from QRS Music is described as a super detector.
The following is from UV201.com:
The QRS Music Company produces and markets mechanical music items, and are best known for player pianos and rolls. The company is still very much alive and concentrating on their traditional market, but for a brief time in the 1920's, they also sold a line of radio tubes.
The QRS tubes were distinctive, to say the least. They were dipped in a clear red lacquer and, appropriately, called Red top tubes. Naturally, this had no effect on their operation, but they look great when they are lit. In the early days of radio, when this technology still had a magic quality about it, appearance was as important as actual performance. The exotic appearance of the QRS tubes, with two red lights burning in each one, must have been very impressive to the gullible customer.

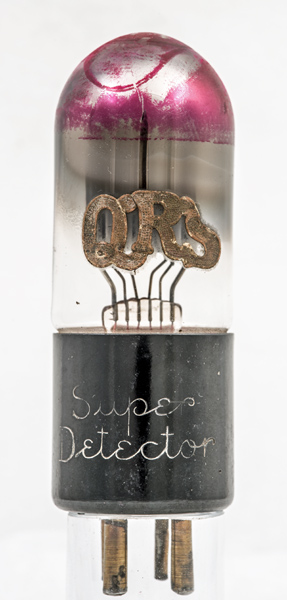

Functionally the super-detector, is equivalent to the UX-200A. It is actually two triodes connected in parallel internally. This is the only exhibit we have where the base cap carries the identification.

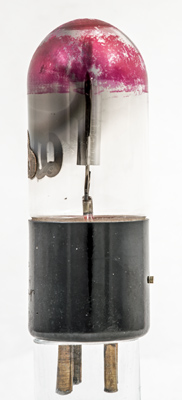

The two triode sections seen end-on.

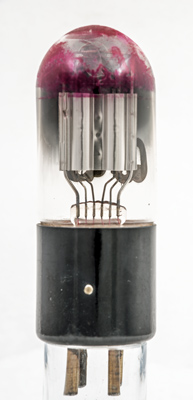

Face view with the bayonet locating pin on the base cap.

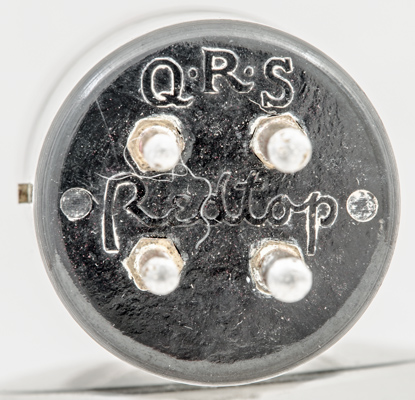

The underside of the base with the words QRS and Redtop.

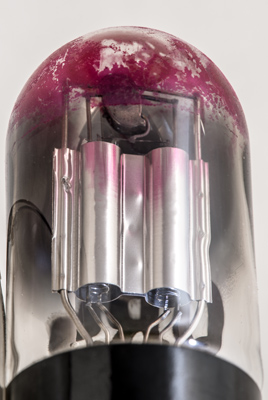

The twin triodes have a single anode and through each section is a single strand filament.

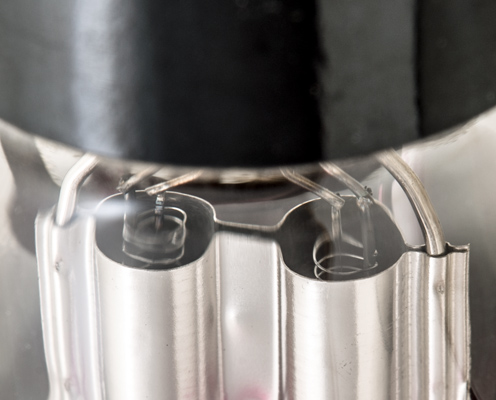

The grids are helical and supported on one side. This is a view up from the base cap.

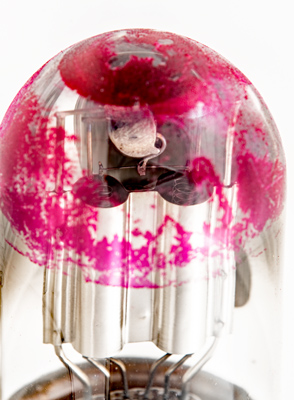

Looking through the red top it is clear that the filaments are joined together but it is not clear whether they are connected in series or parallel.
The wide glass tube envelope is 35 mm in diameter, and excluding the UX4 base pins is 90 mm tall.
References: data-sheet & UV201.com.



Pin Connections
UX4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
5.0
-
-
PDF scanned from an original document held by the museum
