PCL82

Sensibly equivalent to:
16A8 30PL12

Extras ▼

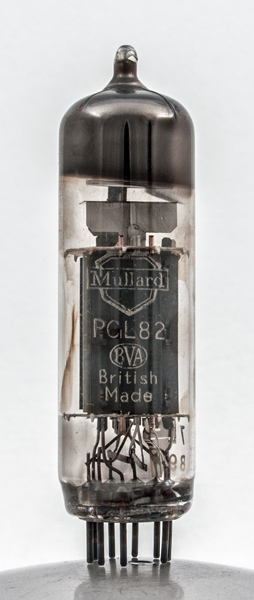

The PCL82 triode pentode is a typical audio output and/or frame oscillator and output stage valve. This exhibit has the older style Mullard logo.

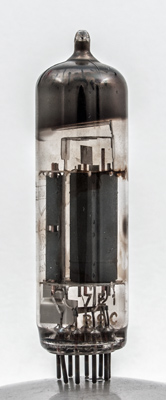

The triode on the left and the discolouration of the glass indicates that this valve has had a hard life.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 70 mm tall.
References: Datasheet & 1040. Type PCL82 was first introduced in 1955.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
k,g3,s
g1
h
h
a
g2
k(t)
a(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
Pout
D
16
0.3
170
170
-11.5
41
7.5
16k
7.5
7.0W
3.3W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 24, 2016.
