85A3Sensibly equivalent¶ to:5783 5783WA CV3933 CV3960 M8190See also:
|
|
|

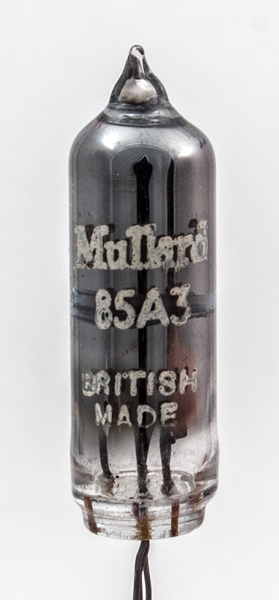

The 85A3 from Mullard is a special quality miniature 85 Volt voltage reference tube with flying leads for direct soldering into circuit.The minimum ignition voltage is 125V and the optimum burning current is 2mA.![](../pics/aca0003a.jpg)

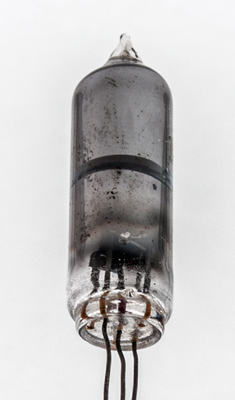

The base wires.The thin glass tube envelope is 9 mm in diameter, and excluding the base wires is 32 mm tall.References: Data-sheet & Data. |
Pin Connections
| 1 | 2 | 3 | ![](../static/key.gif) k | a | k |
|
|
Absolute Maximum Operating Conditions¶
Stabiliser | Va | mAa | ![](../static/pdflogo.gif)
| 85 | 3.5 |
|
Updated January 19, 2023.
|
|
