6AR7GT



Extras ▼

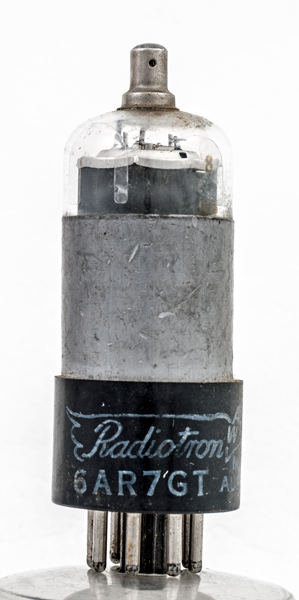

The data sheet describes the 6AR7GT as having two signal diodes and a remote cut-off pentode in one envelope. It was intended as final IF amplifier, detector and ACV rectifier. Remote cut-off indicates a variable μ characteristic.
The internal shields connect to pin 7 and the external shield connects to pin 2.

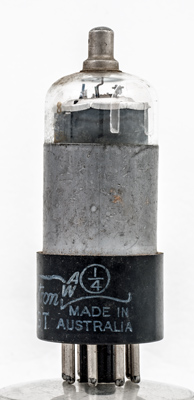

The AWV logo and Made in Australia.

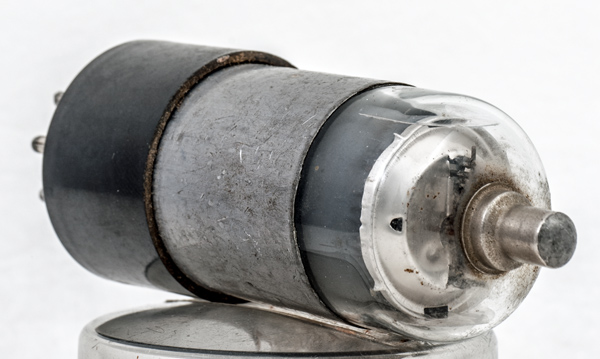

The external shield is a substantial metal cylinder. The internal top screen hides the internal structure except for the tops of the grid supports.
The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 78 mm tall.
Reference: Datasheet. Type 6AR7GT was first introduced in 1949.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
h
s
a
g2
a(d2)
a(d1)
k,g3,s
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-2
7.0
1.8
1.2M
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 27, 2019.
shape:wide.glass.tube construction:pinch type:double.diode.pentode age:1940.1950 base:io heater:6.3v pins:8 pin:1.h pin:2.s pin:3.a pin:4.g2 pin:5.a(d2) pin:6.a(d1) pin:7.k.g3.s pin:8.h pin:tc.g1
