CV2130

Sensibly equivalent to:
4-125A 6155 C1108 CV2963 QY3-125 TT16

Extras ▼



The CV2130 specification is based on the Mullard QY3-125. It is an RF power tetrode with a maximum anode rating of 125 Watts dissipation. To keep within temperature limits forced air cooling is required above 50 MHz. Interestingly this valve is also rated for use as a class B modulator where a pair can generate 345 Watts of audio.

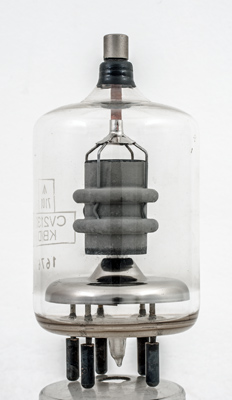

The anode is hung from the top cap.

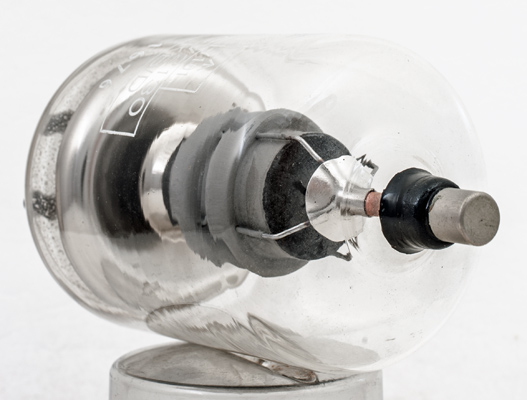

The top of the anode is partially closed by a top ring with a small central hole.

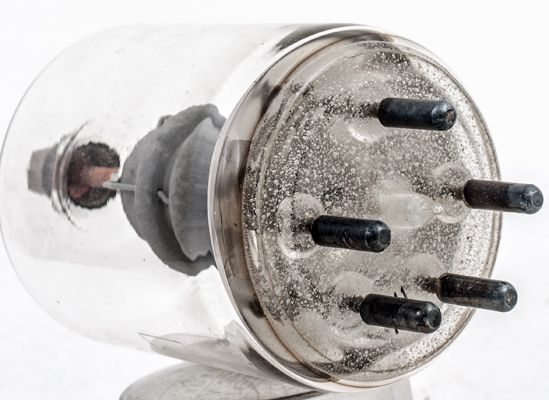

The hard sintered glass base with B5F base pins.

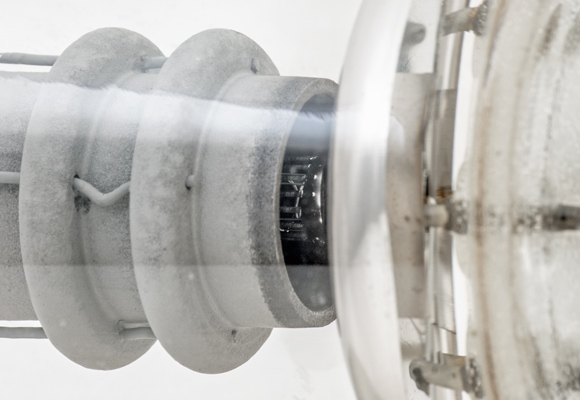

The filament is helical and the grid is a cage of vertical wires with a thin helical wire running the length of the grid.
The wide glass tube envelope is 60 mm in diameter, and excluding the B5F base pins is 106 mm tall.
Reference: Datasheet. Type CV2130 was first introduced in 1956.



Pin Connections
B5F
1
2
3
4
5
tc
f
g2
g1
g2
f
a



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
5.0
6.5
3,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 17, 2019.
shape:wide.glass.tube construction:all.glass type:tetrode age:1950.1960 base:b5f heater:5.0v pins:5 pin:1.f pin:2.g2 pin:3.g1 pin:4.g2 pin:5.f pin:tc.a
