6P36S



Extras ▼

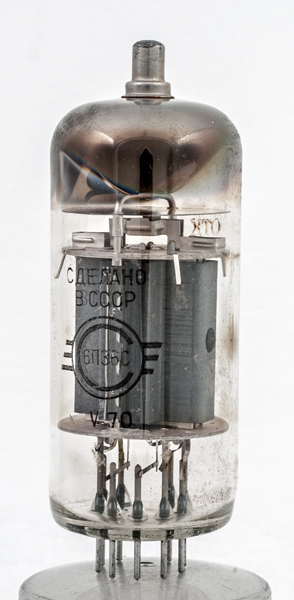

The 6P36S is a Russian TV line output valve for use with 110° picture tubes and in Cyrillic the Type is 6П36С.

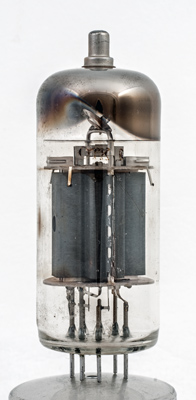

The anode is designed to dissipate 17 Watts.

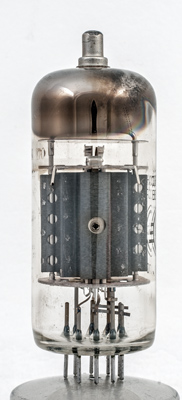

Looking along the grid axis the hole in the end wall of the anode reveals the beam plate.

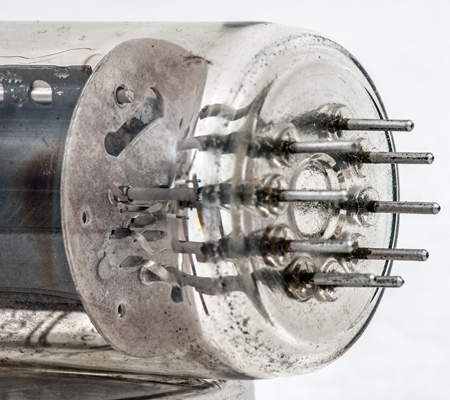

The hard glass base and lower mica components.
The wide glass tube envelope is 38 mm in diameter and, excluding the B9D base pins, is 97 mm tall.
Reference: Datasheet. Type 6P36S was first introduced in 1973.



Pin Connections
B9D
1
2
3
4
5
6
7
8
9
tc
g1
g1
k
h
h
g2
g2
k
-
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
mAa
6.3
2.0
100
120
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 18, 2019.
