RL2T2



Extras ▼



The RL2T2 is a directly heated battery triode. The word Wehrmacht and the logo place this as a WWII German valve. The shape and integral handle show that this was designed to be replaceable in the field. The 1.9 Volt filament indicates that this was to be used with accumulator LT supplies.

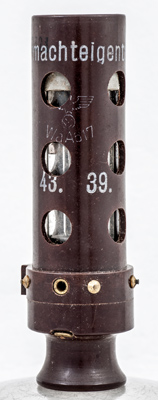

The logo and figures 43 and 39.

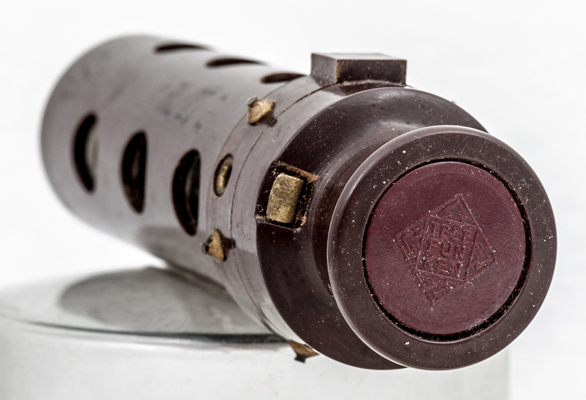

The locating key and maker's name on the handle.

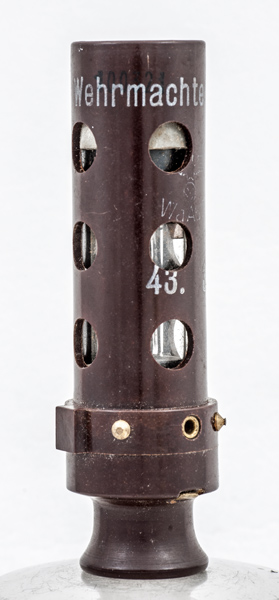

The thin glass tube in plastic envelope is 21 mm in diameter and, excluding the base pins, is 84 mm tall.
Reference: Datasheet. Type RL2T2 was first introduced in 1936.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
1.9
0.29
130
-1.5
15
2.0
Updated August 18, 2019.
shape:thin.glass.tube construction:pinch type:triode age:1930.1940 base: heater:2.0v pin:
