VA26T

Sensibly equivalent to:
CAV35
See also:
Cintel VA26T Advert - 1957 Cintel Brochure

Extras ▼

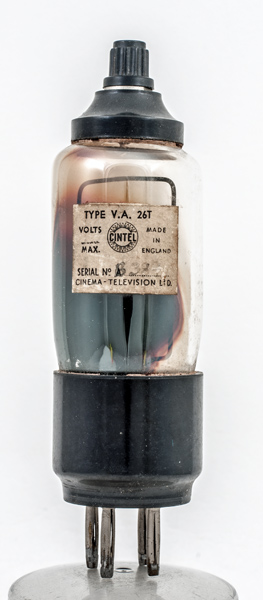

The VA26T is photocell with an antimony photo-cathode.

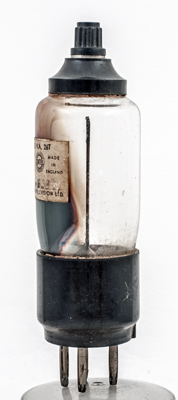

The anode is a rectangular wire ring.

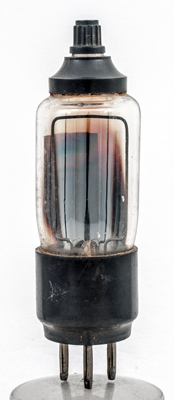

The photo-cathode is deposited directly on the envelope glass.

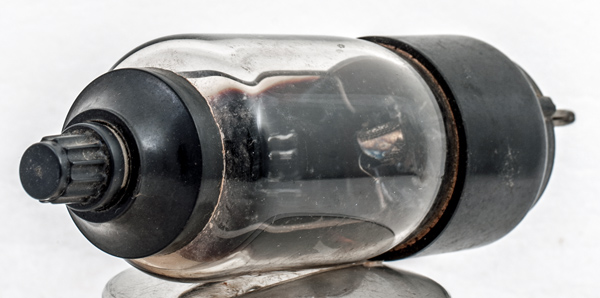

The small bucket by the pinch originally held the photo-cathode material. There is no obvious connection to the top cap but it has to connect to the coated glass.

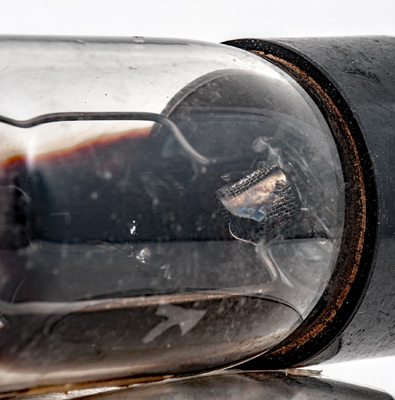

A closer view of the mesh bucket.
The wide glass tube envelope is 35 mm in diameter and, excluding the B4 base pins, is 103 mm tall.
References: 4093 & Advert.



Updated September 10, 2019.
shape:wide.glass.tube construction:pinch type:photocell age:1950.1960 base:b4 pins:4 pin:
