MX123

Sensibly equivalent to:
ZP1470

Extras ▼

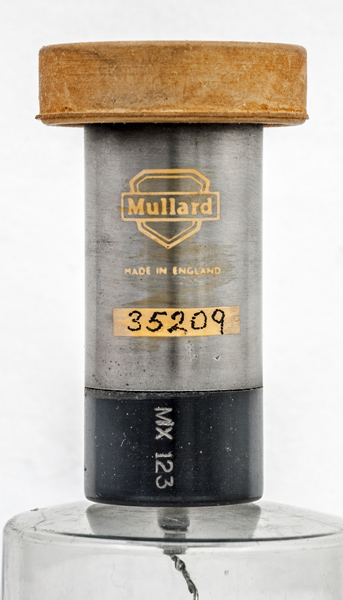

The Mullard MX123 is a Geiger-Muller tube with a very thin mica window. The main use is for the counting of alpha and beta particles. The inside of the tube is conducting and is the cathode. The anode is a central rod or wire - probably tungsten. The MX123 has a gas filling of neon, argon and halogen.

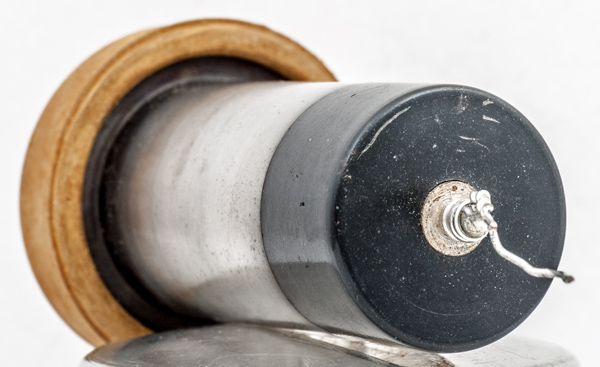

The central anode connection. The body is the cathode connection.

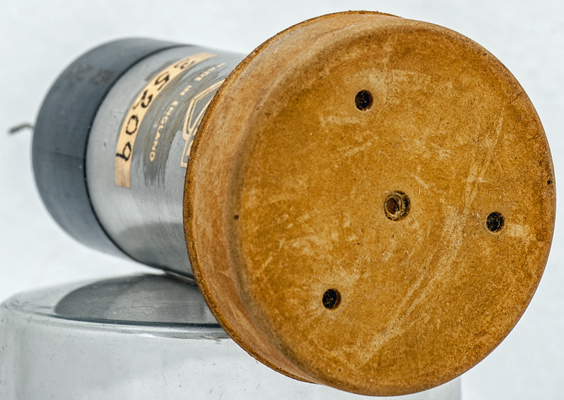

The protective end window cover.

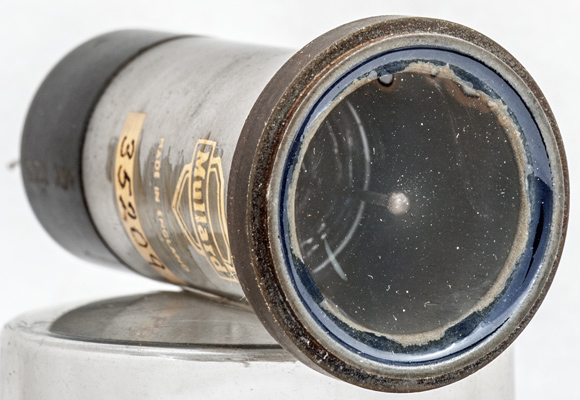

The mica window showing the anode within.

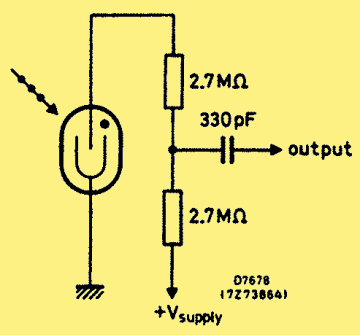

A typical circuit configuration.
The wide metal tube envelope is 26 mm in diameter and, excluding the base pin, is 65 mm tall.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Cold Cathode
Va
400
PDF scanned from an original document held by the museum
Updated December21, 2019.
shape:wide.metal.tube construction:glass.foot type:cold.cathode age:1960.1975 base: pin:
