LSD2


See also:
Mullard Flash-tube General Data

Extras ▼



The LSD2 is a specialised flash tube for high speed photography. The flash duration is given as 1 μS and the discharge is 35 Joules. The flash should be fired once a minute at maximum by a 5,000 V pulse to the trigger electrode.

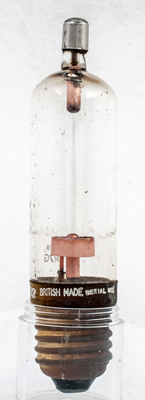

British Made.

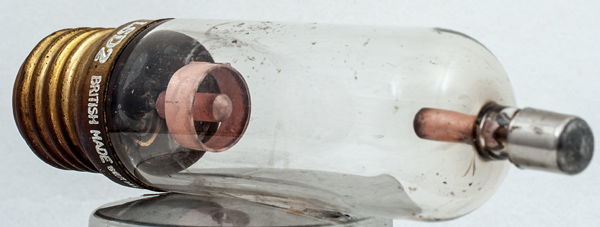

The cathode and trigger. Presumably the outer ring is the trigger. The filling gas is probably xenon.

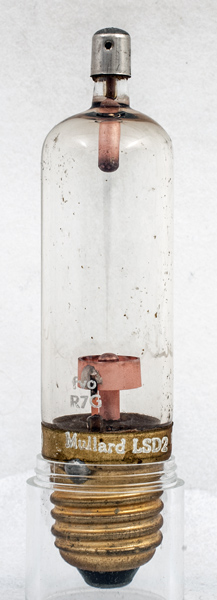

The wide glass tube envelope is 30 mm in diameter and, excluding the ES base, is 125 mm tall.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
Flash Tubes
Va
10,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 17, 2020.
shape:wide.glass.tube construction:glass.foot type:flash.tube age:1940.1950 base:es pin:
