CV4015

Sensibly equivalent to:
6065 M8161 QA2400 VX7075

Extras ▼

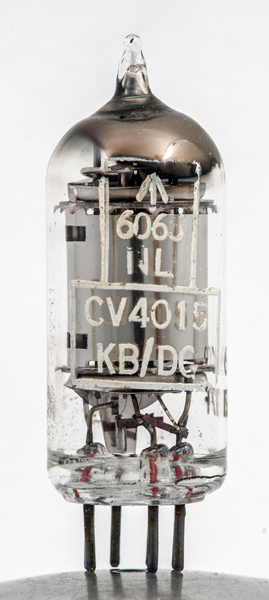

The CV4015/6065 is an indirectly heated RF and IF vari-μ pentode for use in compact radio equipment subject to vibration. It is a special quality version of the EF92 design. Vibration resistance is achieved by the use of double mica sheets in the supports.

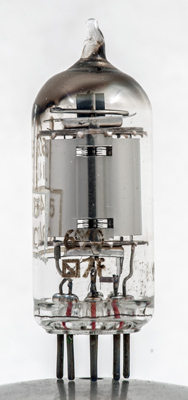

All three wire grids can be seen. The variable pitch of the control grid is hidden.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
References: Data-sheet & 6065 data-sheet. Type CV4015 was first introduced in 1953.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g3,s
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
200
200
-2.5
8.25
2.1
0.9M
2.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 25, 2020.
shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.g3.s pin:7.g2
