6AK6

Sensibly equivalent to:
CV1762

Extras ▼



The 6AK6 is a miniature output pentode. The output is up to 1.1 Watts in single ended mode. The anode load is given as 10 kΩ.

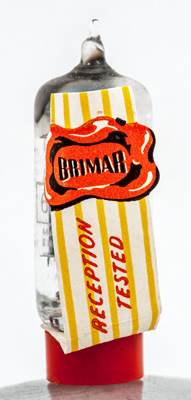

The Brimar label proclaiming Reception Tested - clearly aimed at the retail replacement market.

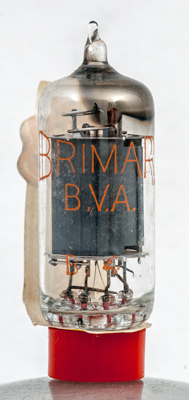

The Brimar logo.

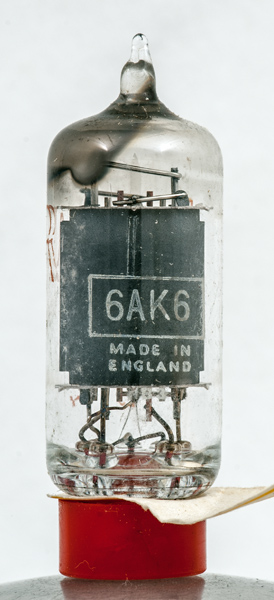

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
Reference: Data-sheet. Type 6AK6 was first introduced in 1947.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
g3
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3V
0.15
180
180
-9
15.0
2.5
0.2M
2.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 07, 2020.
shape:thin.glass.tube construction:all.glass type:pentode age:1940.1950 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.g3 pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.k
