VDS

Sensibly equivalent^¶ to:

E353

See also:

Osram Catkin Advert - Marconi DC Mains Valves Advert

Extras ▼

Marconi TNMoC The National Museum of Computing - Valves

The Marconi VDS is a variable μ RF pentode with a control grid range of -0.5 to -30.0 Volts. The heater rating indicates that it was used in AC/DC mains superhet radio sets.

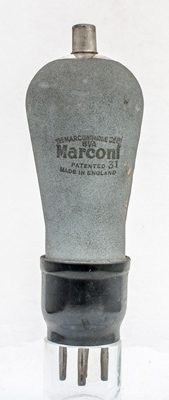

The Marconi brand and Made in England.

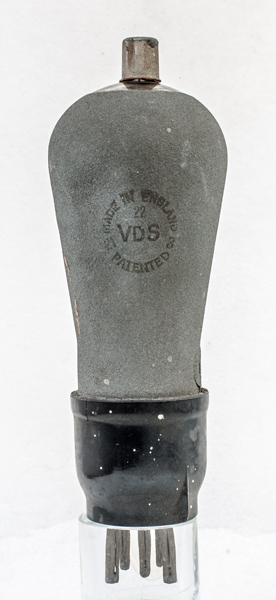

The balloon envelope is 45 mm in diameter and, excluding the B5 base pins, is 120 mm tall.

Reference: ¹⁰⁴³. Type VDS was first introduced in 1932. See also 1932 adverts.

Pin Connections

B5	1	2	3	4	5	tc
	g2	g1	h	h	k,g3	a

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	16.0	0.25	200	80	-	11.0	1.2	0.25M	2.4

Updated July 03, 2022.
