6Y5VSensibly equivalent¶ to:6Y5
|
|
|

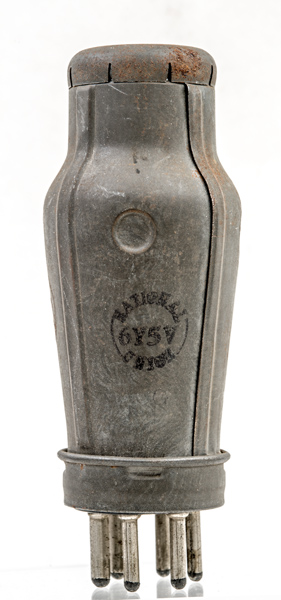

The 6Y5V is a full wave rectifier with an external metal screening can. Why screen a mains rectifier? There must have been a good reason as the shaped can would add considerably to the cost. Is it possible that with vibrator HT the harmonics needed excluding from the rest of the circuit.![](../pics/acf0286a.jpg)

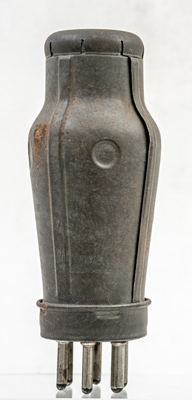

The plain reverse. The can is assembled from four parts.The classic envelope is 40 mm in diameter and, excluding the UX6 base pins, is 91 mm tall.References: Data-sheet & Data. Type 6Y5V was first introduced in 1937. See also 1937 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | ![](../static/key.gif) h | ic | a(2) | k | a(1) | h |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | mAa | ![](../static/pdflogo.gif)
| 6.3 | 0.8 | 350 | 50 |
|
