Z865W



Extras ▼

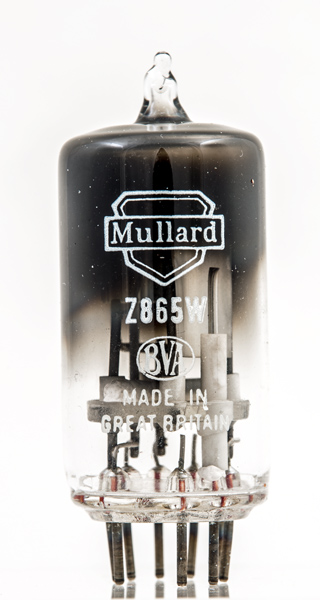

The Z865W is a small cold cathode thyratron or trigger tube. As this is a gas filled valve the leads are covered with ceramic tubes where a discharge is not wanted.

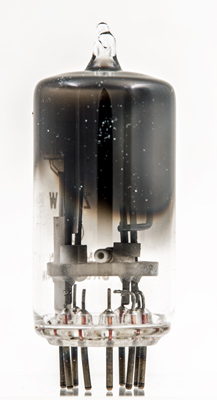

Side view.
The gettering prevents a clear view of the inner structure.
The thin glass tube envelope is 21 mm in diameter and, excluding the base pins, is 47 mm tall.
Reference: Data-sheet. Type Z865W was first introduced in 1968. See also 1968 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a
ic
ic
g1
k
h
k
g1
ic



Absolute Maximum Operating Conditions
The Thyratron
Va
350
Thanks to Frank Philipse for supplying the above PDF datasheet.
