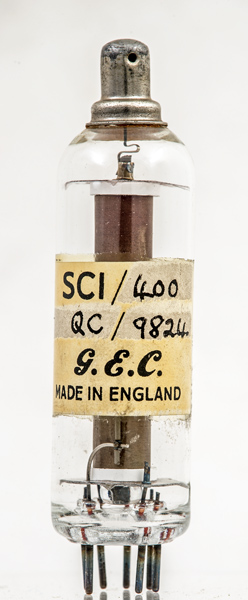

The SC1/400 is a corona voltage stabiliser. It is hydrogen filled and designed to work at 400 V for currents between 10 - 500 μA.

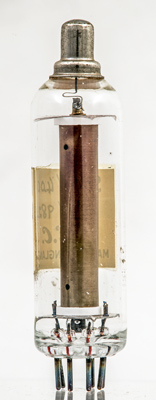

The construction is a rod anode within a cylindrical cathode.The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 64 mm tall.References: Adverts and above article. Type SC1/400 was first introduced in 1956. See also 1956 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | tc |  nc | nc | nc | nc | nc | nc | k | a |
|
|
Absolute Maximum Operating Conditions¶
Stabiliser | Va | mAa |
| 400 | 0.5 |
|
Updated May 22, 2023.
|
|
