The EF86 is the standard early stage audio pre-amplifier valve. The design is low noise and anti-microphonic and was developed from the B8A EF40. In use it is recommended that it is fitted into a vibration resistant base. This has a synthetic rubber mount.
Hum. When used as a normal voltage amplifier with a line voltage of 250 V and an anode load of 100 kΩ and a grid resistor of 470 kΩ the maximum hum level of the valve alone is 5 μV, the average value being about 3 μV when operated with one side of the heater earthed. This can be further reduced by centre tapping the heater to earth. Under these conditions the maximum hum level is 1.5 μV. The low level of hum attained with this valve can be completely masked by that due to an unsuitable valve-holder, in which excessive leakage and capacitive coupling between pins will introduce considerable hum.
Noise. The low-frequency noise generated by a valve is most conveniently specified as an equivalent voltage on the control grid for a specific bandwidth. For the EF86 under normal conditions, I.e. line voltage of 250 V and an anode load of 100 kΩ, the equivalent noise voltage is approximately 2 μV for the frequency range 25-10,000 Hz.
Microphony. Care in the design of the valve to ensure that the electrode structure and its mounting are as rigid as possible has reduced the microphony of the EF86 to a very low level. There are no appreciable internal resonances at frequencies below 1 kHz. At higher frequencies the effect of vibration is usually negligible on account of the damping provided by the chassis and the valve holder. In high gain applications such as tape recording care should be taken in siting the valve, particularly when a loudspeaker is present in the same cabinet or where a motor is mounted on the same chassis. In such cases a flexible mounting for the valve-holder or a separated weighted sub-chassis is advisable.

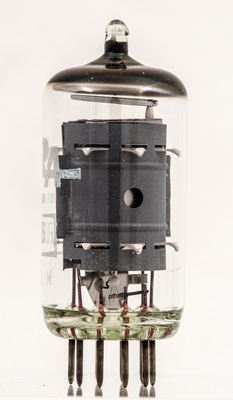

The main electrodes are hidden by the outer screen connected to pin 7.

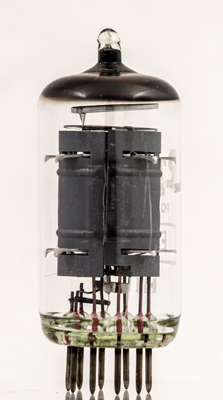

The mica discs holding the electrodes poke through the screen.
The thin glass tube envelope is 22 mm in diameter and excluding the B9A base pins, is 47 mm tall.
References: Data-sheet & 1040. Type EF86 was first introduced in 1953. See also1953 adverts.
