42

Sensibly equivalent to:
42E CV609
See also:
CV609 short entry - Brimar TV Valves advert

Extras ▼



The 42 is an audio output pentode, with a low output rating, but when used in push pull a pair could deliver 18.5 Watts in class AB2.
Also on a UX6 base is the 2.5 Volt 2A5 that is electrically equal to the type 42. The Type 6F6 is also electrically identical, but on an IO base.

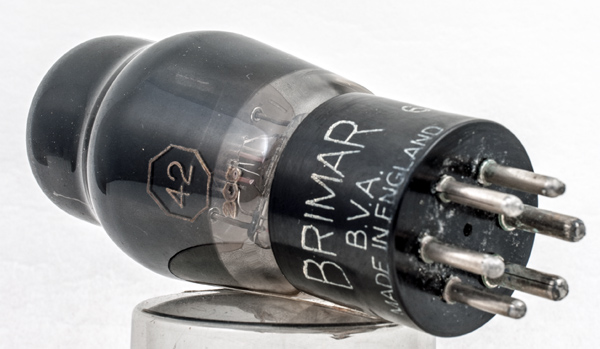

The internal coating of the envelope makes seeing the main structure difficult but it is clear that the anode is carbonised for better heat radiation.
Looking under the coating the control grid can be seen to be wound on copper supports. The suppressor grid is internally connected to the cathode.

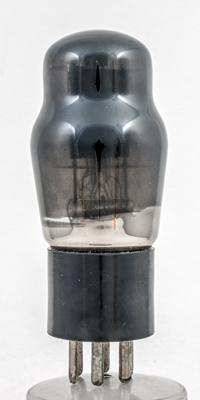

The classic envelope is 44 mm in diameter and, excluding the UX6 base pins, is 97 mm tall.
References: Datasheet, 1040 & 1043. Type 42 was first introduced in 1936.



Pin Connections
UX6
1
2
3
4
5
6
h
a
g2
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
6.3
0.7
250
250
-16.5
34
6.5
80k
2.5
3.2W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 07, 2019.
shape:classic construction:pinch type:pentode age:1930.1940 base:ux6 heater:6.3v pins:6 pin:1.h pin:2.a pin:3.g2 pin:4.g1 pin:5.k pin:6.h
