VP1322

Sensibly equivalent to:
13VPA 210VPT 9D2 C50N CV3796 VP13C

Extras ▼

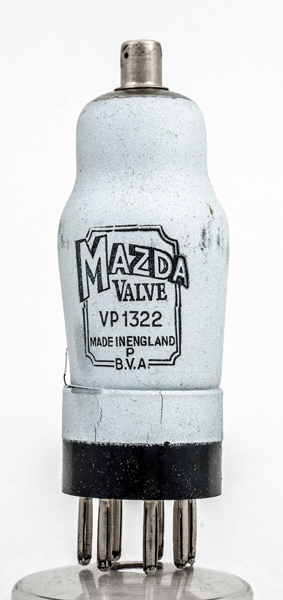

The VP1322 is a vari-μ HF pentode with a 200 mA heater designed for series heater chains. This allowed for domestic receiver to be made that would operate from either AC or DC mains. Until the UK National Grid was fully complete both AC or DC mains supplies were available in different parts of the country.

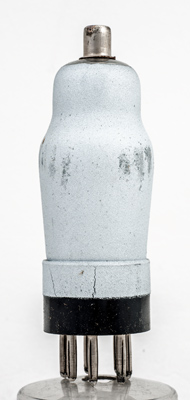

The reverse is plain zinc loaded screening paint.
The classic envelope is 38 mm in diameter, and excluding the B7 base pins is 98 mm tall.
References: Datasheet, 1040 & 1043. Type VP1322 was first introduced in 1936.



Pin Connections
B7
1
2
3
4
5
6
7
tc
M
a
g3
h
h
k
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
13
0.2
250
250
-4
8.8
2.2
0.85M
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 28, 2018.
shape:classic construction:pinch type:pentode age:1930.1940 base:b7 heater:200ma pins:7 pin:1.m pin:2.a pin:3.g3 pin:4.h pin:5.h pin:6.k pin:7.g2 pin:tc.g1
