7B7

Sensibly equivalent to:
CV522 W149
See also:
American Loctal Valves

Extras ▼

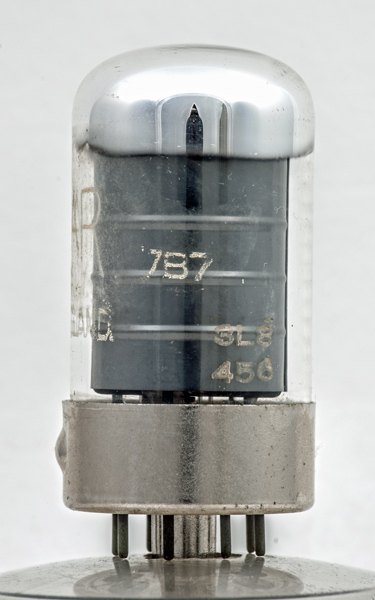

The 7B7 is a high impedance variable μ amplifier pentode. It was designed for RF & IF amplifier use, with a tuned anode circuit.

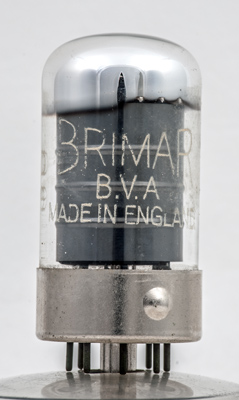

The The Brimar name, BVA and Made in England.

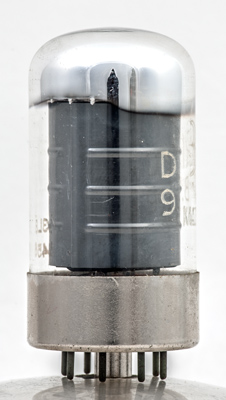

The metal cylinder that one can see is a screen. The anode connection passes within it.
The wide glass tube envelope is 29 mm in diameter and, excluding the B8B base pins, is 54 mm tall.
References: Data-sheet & 1040. Type 7B7 was first introduced in 1940. See also 1940 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g2
g3
s
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.15
250
100
-3
8.5
1.7
0.75M
1.75
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2022.
