35Z3

Sensibly equivalent to:
CV564
See also:
American Loctal Valves

Extras ▼



The 35Z3 is a half wave rectifier that matches the 150 mA heater range of American Loctal valves. These would run directly across the mains without an isolating transformer. Low cost domestic receivers would be the target application. Possibly with line-cord as the mains dropper resistance.

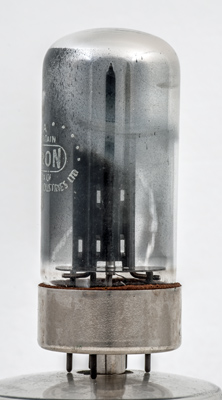

The tall rectifier with the anode stitched together.

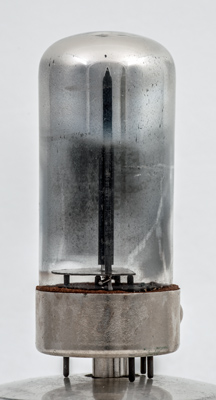

The edge view of the anode.
The wide glass tube envelope is 28 mm in diameter, and excluding the B8B base pins is 66 mm tall.
References: Datasheet, 1040 & 1043.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
-
ic
-
-
k
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
32
0.15
250
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 29, 2018.
