AZ41

Sensibly equivalent to:
CV3892

Extras ▼



The AZ41 is a full wave rectifier. The heater at 4.0 Volts looks back to the pre-war UK standard and the all glass miniature envelope looks to the world of post war miniature valves.
The AZ41 must have a minimum of 200 Ω series resistance to limit the maximum current. The maximum reservoir capacitor must be no more than 50 μF.

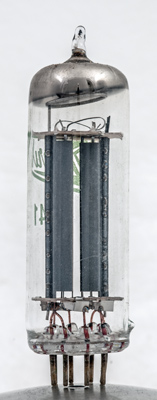

The twin anodes are made of folded sheet and spot welded together.

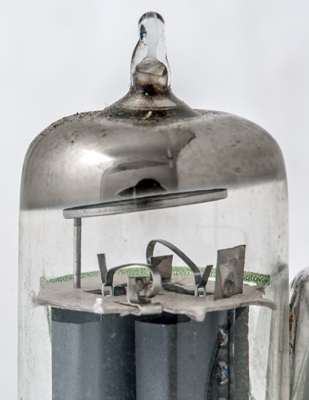

The top mica showing the oxide coated filaments held by tensioning springs.

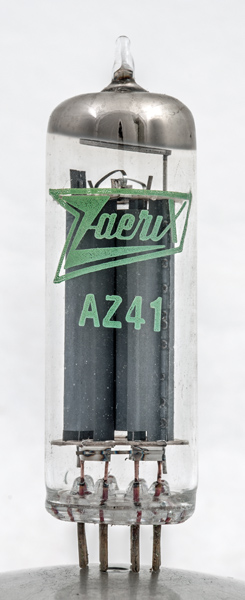

The thin glass tube envelope is 21 mm in diameter, and excluding the B8A base pins is 68 mm tall. The wider section at the base is 21.5 mm in diameter.
References: Datasheet, 3002 & 1040. Type AZ41 was first introduced in 1947.



Pin Connections
B8A
1
2
3
4
5
6
7
8
ic
a(1)
ic
ic
ic
a(2)
h
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
0.72
500
60
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December05, 2019.
shape:thin.glass.tube construction:all.glass type:rectifier.fw age:1940.1950 base:b8a heater:4.0v pins:8 pin:1.ic pin:2.a(1) pin:3.ic pin:4.ic pin:5.ic pin:6.a(2) pin:7.h pin:8.h
