CV4085

Sensibly equivalent to:
CV2901 M8195

Extras ▼



The CV4085 is the special quality M8195 version of the EF86 audio voltage amplifier in a UK government Common Valve type code. The CV4086 is the same valve but with flying leads.

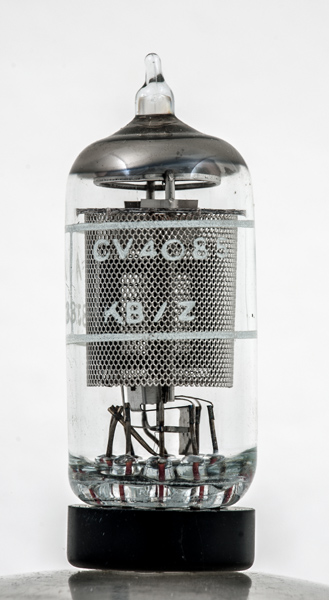

The KB/Z identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Z identifies the maker as MO Valve Company, Hammersmith.

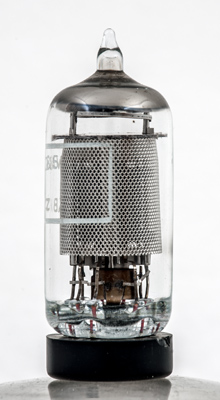

The mesh screen covers the inner structure. Note the screening plate below the lower mica.

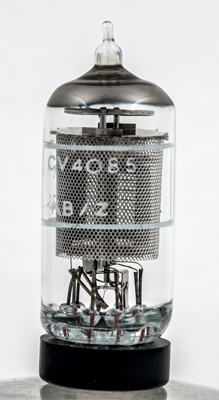

The suppressor grid wire can be seen through the mesh screen. The vertical lower screen shields grid 1 and grid 2. The heater is wound as a double helix to minimise the external AC hum field.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins, is 48 mm tall.
References: Data-sheet & 1040. Type CV4085 was first introduced in 1959. See also 1959 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g2
s
k
h
h
a
s
g3
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.2
250
-5
4
16k
2
Thanks to Frank Philipse for supplying the above PDF datasheet.
