CV395

Sensibly equivalent to:
G180/2M QS150/45 VX372

Extras ▼

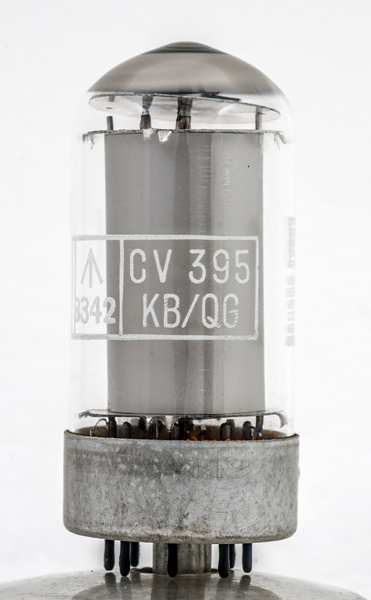

The CV395 is a voltage stabiliser tube that operates with currents through the valve of between 5 and 45 mA and maintains a voltage of 150 Volts. The prototype was the VX372. a(a) is a priming anode. The commercial version is the G180/2M from STC

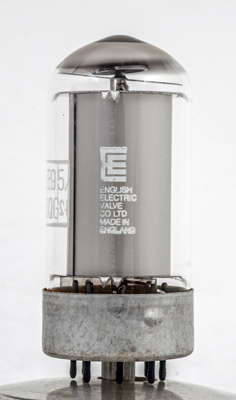

The English Electric logo and name, plus Made in England. On the base skirt is the locating pip for the B8B or Loctal base.
The outer electrode is continuous and obscures the inner rod.
The wide glass tube envelope is 29 mm in diameter, and excluding the B8B base pins is 63 mm tall.
References: Datasheet. Type CV395 was first introduced in 1950.



Pin Connections
B8B
1
2
3
4
5
6
7
8
a
a
a(a)
k
k
k
k
k



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
150
45
PDF scanned from an original document held by the museum
Updated September 24, 2018.
shape:wide.glass.tube construction:all.glass type:voltage.stabiliser age:1950.1960 base:b8b pins:8 pin:1.a pin:2.a pin:3.a(a) pin:4.k pin:5.k pin:6.k pin:7.k pin:8.k
