VR65A

Sensibly equivalent to:
ARP19 CV1335 CV1574 SP41

Extras ▼

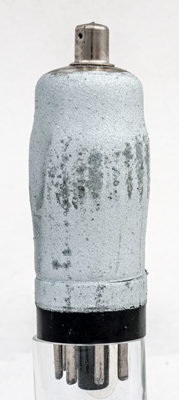

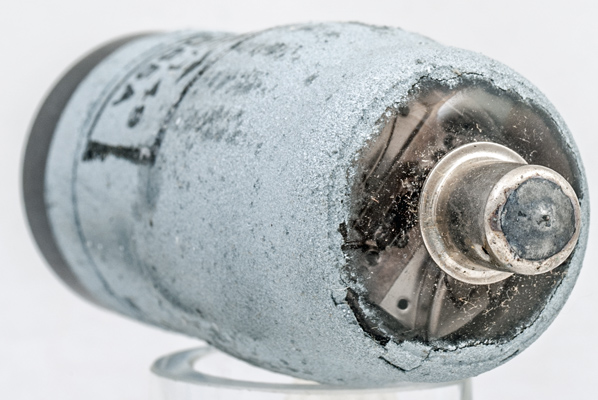

The VR65A is an amplifier pentode with external zinc loaded paint metalisation as shielding. The 4.0 V heater was common in the 1930s when mains sets first began to appear.
By the 1960s they were again in limited demand for maintaining ex-Services test equipment (oscilloscopes, etc.) which was then popular in Amateur circles, and in Third-World countries.

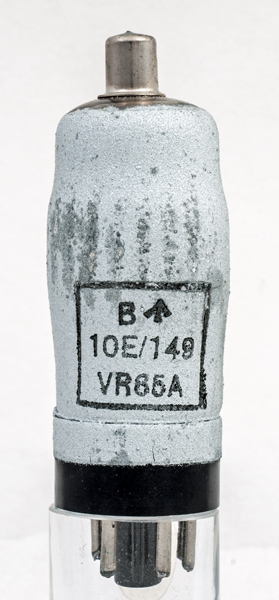

The reverse has the detail 0LW17 in a circle..
The classic envelope is 32 mm in diameter and, excluding the MO base pins, is 80 mm tall.
References: Private communication, datasheet, 1040 & 1043. Type VR65A was first introduced in 1938.



Pin Connections
MO
1
2
3
4
5
6
7
8
tc
h
k
a
g2
g3
m
-
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
0.95
200
200
-1.5
10.9
2.7
0.7M
8.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 05, 2019.
