WL-532

Sensibly equivalent to:
1B32 CV2648

Extras ▼

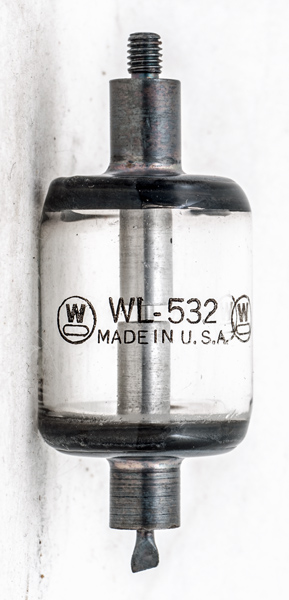

The WL-532 is a spark gap for use to block off a radar receiver during the high power transmit pulse. These are normally called TR Cells.

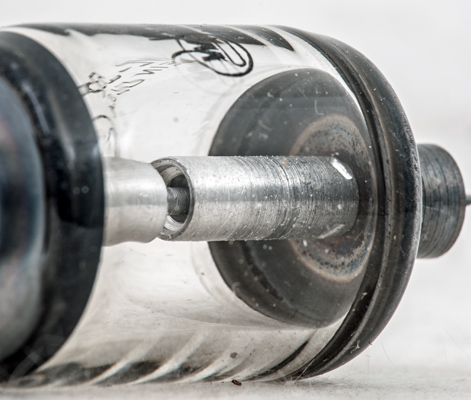

The gap is defined by the diameters of the tubes.
The wide glass tube envelope is 29 mm in diameter, and including the base pins is 71 mm tall.
Reference: Datasheet. Type WL-532 was first introduced in 1945.



Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 05, 2019.
shape:wide.glass.tube construction:all.glass type:cold.cathode age:1940.1950 base: pin:
