CV58

Sensibly equivalent to:
CV258 E1273
See also:
CV258 short entry

Extras ▼

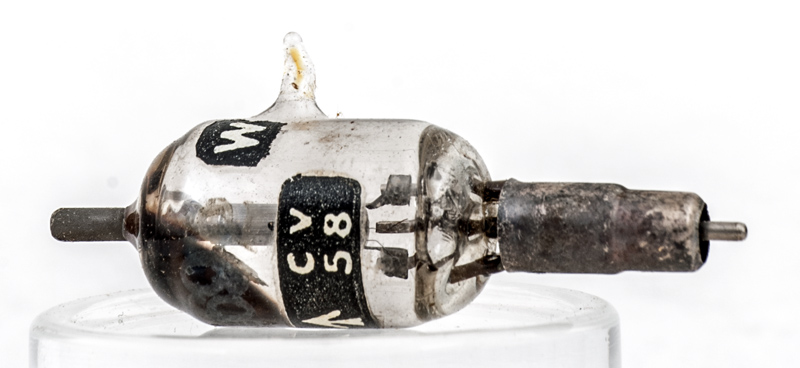

The CV58 is a detector diode designed to operate at microwave frequencies at a wavelength of 9 cm. Radar was the design use. The prototype was the E1273.

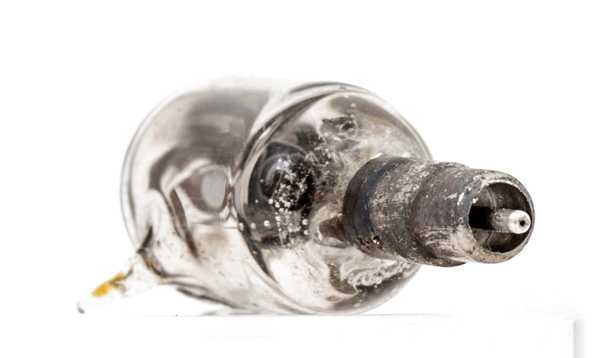

The central pin is the heater and the outer tube is the heater and cathode connection.

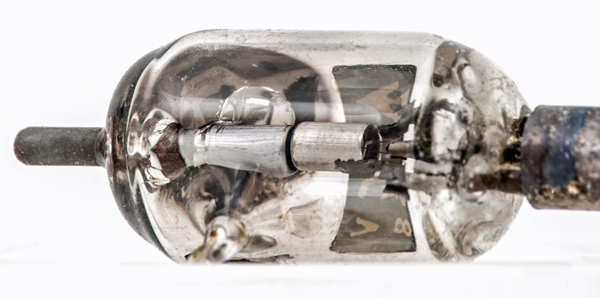

The helical insulated heater can just be seen in the cathode tube. The oxide coating is only on the flat top.
The thin glass tube envelope is 12 mm in diameter, and including the base pins is 43 mm tall.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Diode
Vh
Ah
6.3
0.36
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 19, 2019.
shape:thin.glass.tube construction:all.glass type:diode age:1940.1950 base: heater:6.3v pin:
