CV1065

Sensibly equivalent to:
ARP36 CV118 POVT200 SP61 VR65
See also:
Haltron CV1065 box

Extras ▼



The CV1065 is an HF pentode with an MO base - thus a Mazda valve. Other prior names for the CV1065 were VR65, ARP36 and the GPO POVT200. The prototype was a modified SP41. The SP41 has a 4 Volt heater and the SP61 a 6.3 Volt heater.

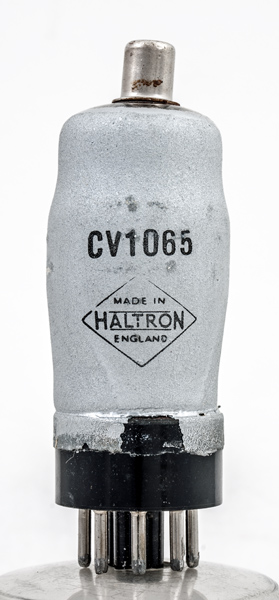

This exhibit has been overprinted with the reseller name.

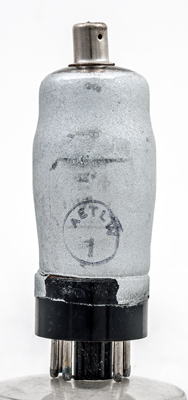

The reverse carries the stores stamp AETLW 1.

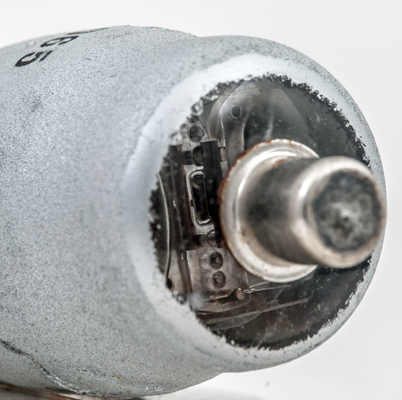

The top mica components are all that are visible. The cathode is a rectangle and the supports for the three wire grids can be seen.
The classic envelope is 32 mm in diameter, and excluding the MO base pins is 81 mm tall.
Reference: Datasheet. Type CV1065 was first introduced in 1941.



Pin Connections
MO
1
2
3
4
5
6
7
8
tc
h
k
a
g2
g3
m
nc
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.6
200
200
-1.5
10.9
2.7
0.7M
8.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 05, 2019.
shape:classic construction:pinch type:pentode age:1940.1950 base:mo heater:6.3v pins:8 pin:1.h pin:2.k pin:3.a pin:4.g2 pin:5.g3 pin:6.m pin:7.nc pin:8.h pin:tc.g1
