CV244

Sensibly equivalent to:
4046A AF2 MS/Pen POVT122

Extras ▼

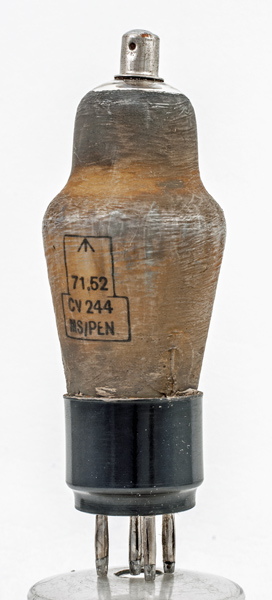

The CV244 is an indirectly heated straight HF pentode. The prototype was the MS/Pen from Cossor and both Type designations are present on the metalised envelope. See MVS/Pen for the vari-μ version. Both valves have the same distinctive Cossor envelope shape.
The classic envelope is 44 mm in diameter and, excluding the B5 base pins, is 113 mm tall.
Reference: Datasheet & 1043.



Pin Connections
B5
1
2
3
4
5
6
7
8
9
10
11
12
tc



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
4.0
1.0
200
100
-1.5
4.7
1.3
3.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
