CV1535

Sensibly equivalent to:
6V4 EZ80

Extras ▼

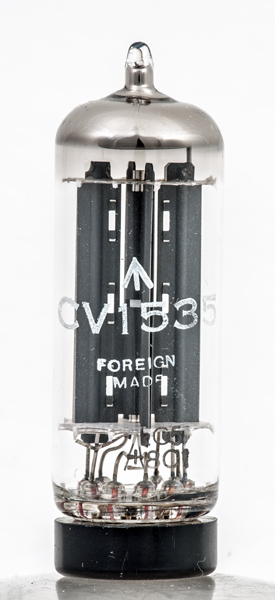

The CV1535 is a full wave rectifier that is ideally suited to small equipment both receivers and test equipment. The commercial EZ80 was found in many broadcast receivers and domestic audio equipment.
The performance is: 90 mA maximum current and with a required series resistance of 300 ohms to reduce the initial surge in charging the maximum 50 µF reservoir capacitor.

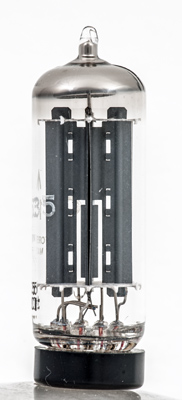

Both abodes are identical and are mounted vertically on a common cathode tube. The top anode is an inverted version of the lower anode and rotated through 90 degrees.

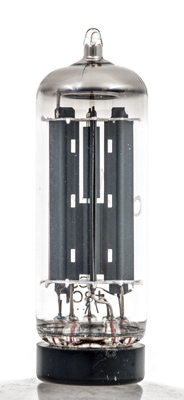

The lower anode.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 56 mm tall.
References: Datasheet & 1040. Type CV1535 was first introduced in 1954.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
ic
k
h
h
ic
a(1)
ic
ic



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.6
350
90
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 26, 2019.
