CV1072

Sensibly equivalent to:
AU6 CV1626 CV2738 GU50 MU4250 NU16 RG1-240A VU72

Extras ▼

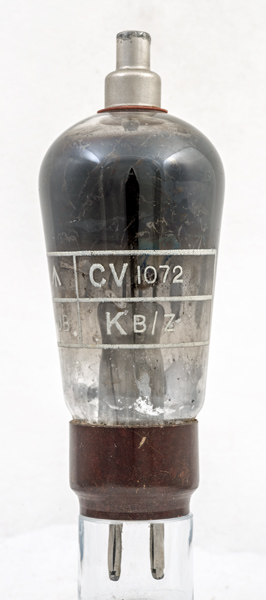

The CV1072 is a half wave mercury vapour rectifier. The prototypes were the GU50, RG1/240 and the MU4250. Previous service names were AU6 and VU72.
The internal coating will help reduce the UV originating in the discharge.

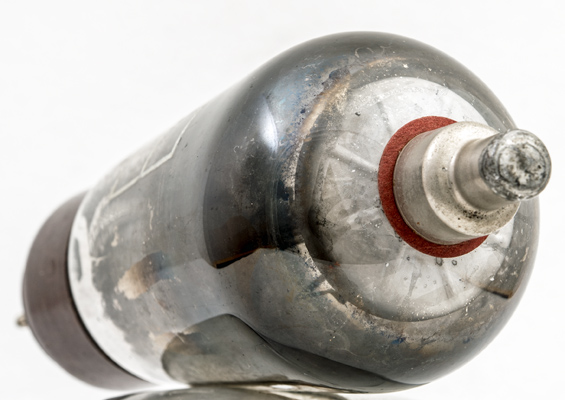

The anode connected only to the top cap is shaped for rigidity.

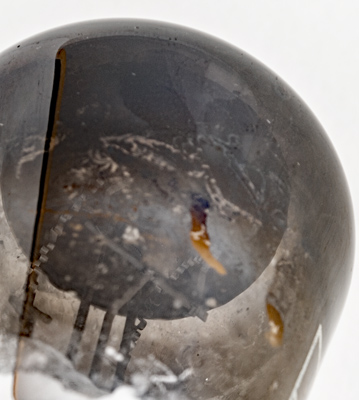

The twin corrugated ribbon filaments. See GU50 for a clearer image.
Reference: Data-sheet.



Pin Connections
B4
1
2
3
tc
nc
nc
f
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
3.0
1,750
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
