Sensibly equivalent to:
991 NE16 XC16
Extras ▼

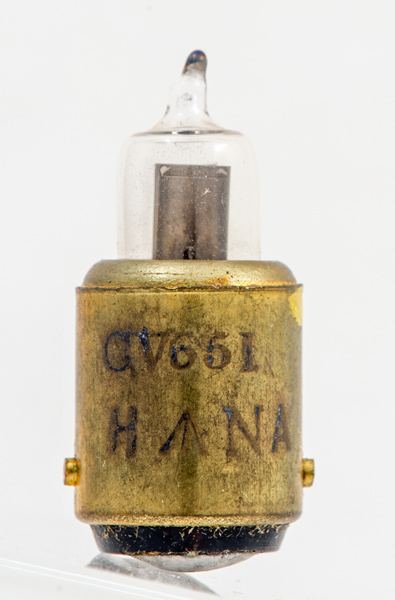

The CV651 is a neon indicator and/or voltage stabiliser fitted into a small bayonet base. It strikes at 87 Volts minimum and is designed to burn at 48 to 67 Volts with a current of 0.4 to 2.0 mA. Probable use would be to stabilise a local oscillator.

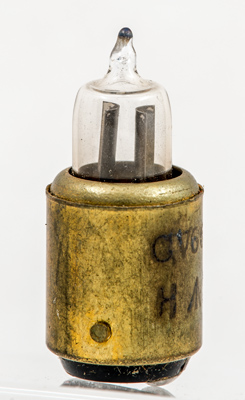

The electrodes are identical curved plates. The bayonet base is not polarised to guarantee a particular insertion direction.
The thin glass tube envelope is 10 mm in diameter and, including the bayonet base, is 34 mm tall.
References: Data-sheet & 3002.


Absolute Maximum Operating Conditions
48 - 67
0.4 - 2.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 27, 2021.
