CV988

Sensibly equivalent to:
X961101

Extras ▼



The CV988 is a miniature neon indicator.
The KB/Z identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Z identifies the maker as MO Valve Company, Hammersmith.

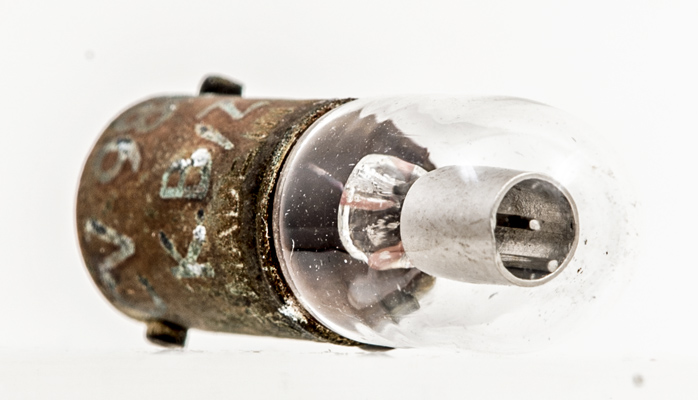

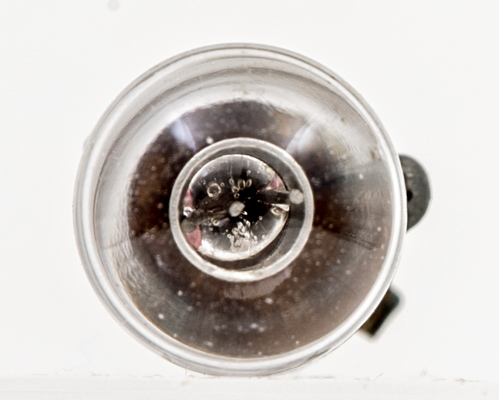

The outer cylindrical cathode with central anode rod.
The thin glass tube envelope is 10 mm in diameter and, including the base pins, is 29 mm tall.
Reference: Observation.



Updated October 25, 2024.
