CV1400

Sensibly equivalent to:
C1C

Extras ▼



The CV1400 is a current stabiliser or Barretter based on the commercial C1C. For voltages between 100 and 200 Volts the current varies by only 30 mA. If a pure voltage source is connected across a Barretter the filament will be destroyed, it has to be in a current limited circuit.
The KB/D identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the D identifies the maker as Mullard Radio Valve Co., Mitcham.

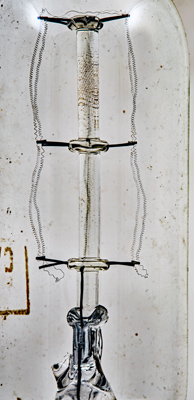

The iron wire is coiled to allow maximum length in a small space. The envelope will have a hydrogen filling.

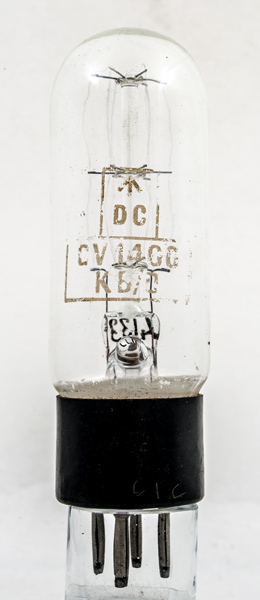

The wide glass tube envelope is 39 mm in diameter and, excluding the B4 base pins, is 113 mm tall.
Reference: Data-sheet.



Pin Connections
B4
1
2
3
4
nc
nc
f
f



Absolute Maximum Operating Conditions
Stabiliser
Vh
Ah
120
0.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
