CV2161Sensibly equivalent¶ to:
|
|
|
The CV2161 is a Klystron without a built-in cavity by English Electric. The commercial Type of K301 is on the glass.The data-sheet gives full details of this local oscillator reflex klystron. The operating frequency range is 2.5 to 3.5 GHz.![](../pics/acl0304a.jpg)

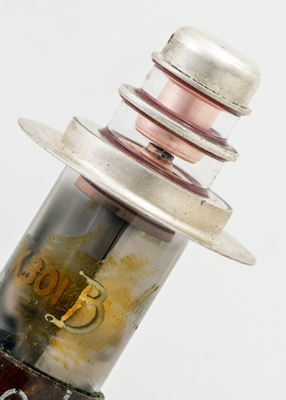

The connections to the external cavity resonator.![](../pics/acl0304b.jpg)

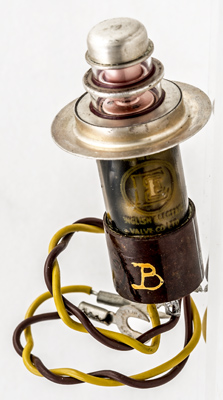

The B appears on the base and the glass suggesting that this was a variant. The English Electric logo is on the glass.![](../pics/acl0304c.jpg)
Another view.![](../pics/acl0304x.jpg)

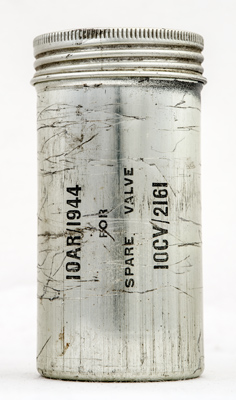

The valve cam in this original aluminium can with screw lid. The can measures 45 mm diameter and is 91 mm tall.![](../pics/acl0304y.jpg)
Internally the valve is held by two soft fibre rings.The thin glass tube envelope is 18 mm in diameter and, excluding the base pins, is 62 mm tall.Reference: Data-sheet. Type CV2161 was first introduced in 1958. See also 1958 adverts. |
