VR119Sensibly equivalent¶ to:
|
|
|
The VR119 is a double signal diode later renamed the CV1119. The commercial prototype was the Cossor DDL4.

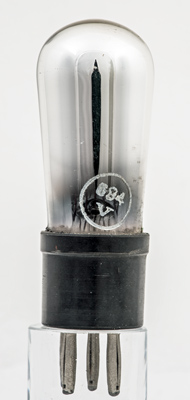

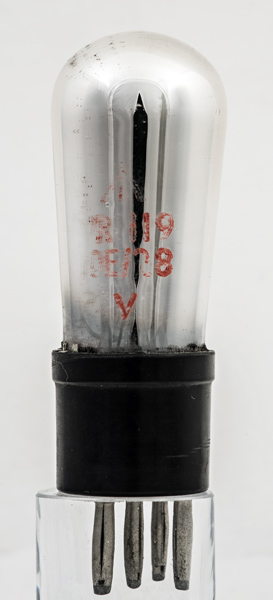

The silver gettering obscures the details but under strong light the heater entering a single cathode can be seen. The diodes are thus stacked vertically. The balloon envelope is 30 mm in diameter and, excluding the B5 base pins, is 78 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 |  a(2) | a(1) | h | h | k |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | mAa |
| 4.0 | 0.75 | 200 | 10.0 |
|
Updated May 16, 2021.
|
|
