VI132

Sensibly equivalent to:
CV1132

Extras ▼

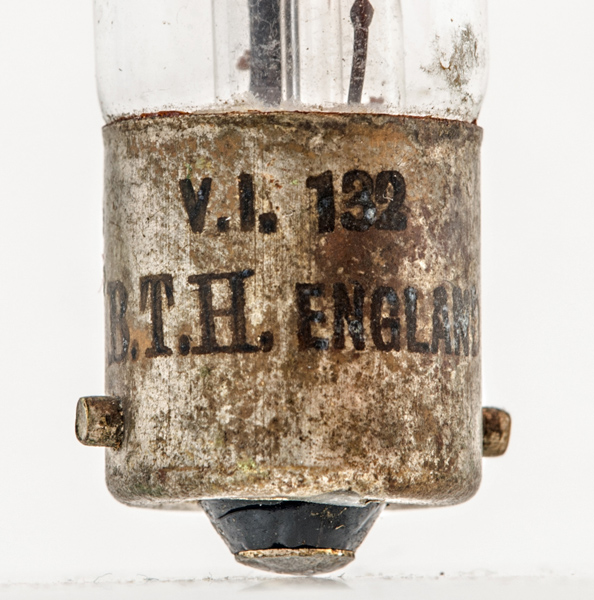

The VI132 is a neon indicator fitted with a small bayonet cap. The later name was the CV1132.

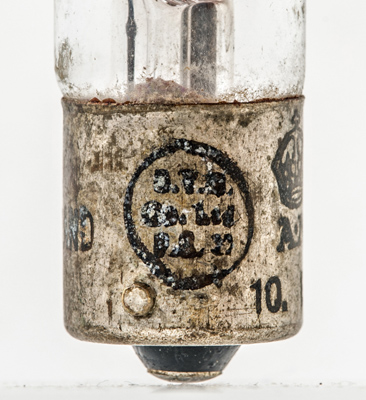

The maker's identification. The BTH factory was located on the North West side of the mainline railway station at Rugby and were a major defence contractor.

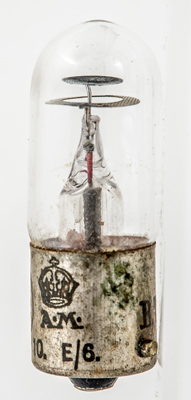

The crown and letters AM for the UK Air Ministry.

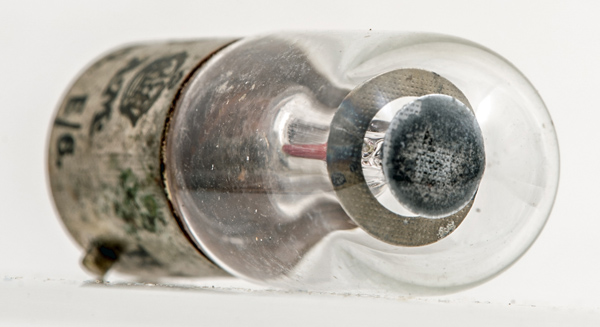

The disc and annular electrode.
The thin glass tube envelope is 16 mm in diameter and, including the base pins, is 45 mm tall.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
General Notes
Va
165
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 10, 2021.
