8134


See also:
Choosing a Vidicon

Extras ▼



The 8134 Vidicon has a low heater requirement of 0.6 Watt and the camera tube design was for including into transistorised camera for closed-circuit and industrial applications. The focus in the tube is electrostatic and the raster is scanned magnetically by external coils.

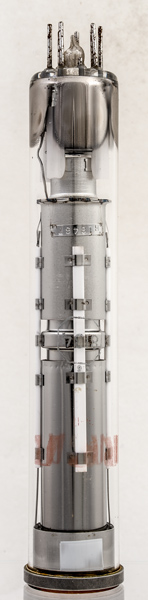

The red lettering towards the end window are RCA.

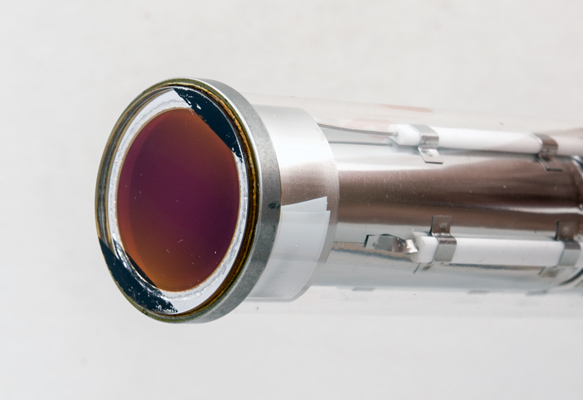

The light sensitive target with connection around the outer ring.
The wide glass tube envelope is 26 mm in diameter and, excluding the base pins, is 146 mm tall.
Reference: Data-sheet. Type 8134 was first introduced in 1972.



Pin Connections
1
2
3
4
5
6
7
8
tc
h
g1
g4
g3,g6
g2
g5
k
h
t



Absolute Maximum Operating Conditions
Camera
Vh
Ah
6.3
0.095
PDF scanned from an original document held by the museum
Updated June 17, 2021.
