The CV5463 is a Heil Tube microwave oscillator for operation between 4.1 and 4.6 GHz.
This exhibit was made in England by STC for the American Parent ITT.
This oscillator tube was introduced primarily for use in the STC Miniature Radio Altimeter in which the tube operates, with a minimum power output of 750 mW, in a waveguide cavity designed for mechanical frequency modulation of ±50 MHz in the band 4.2 to 4.4 GHz. If, however, the V243A/2FS is mounted in the waveguide cavity 495-LVA-251, the frequency range can be increased to cover 4.1 to 4.6 GHz.
The tube is designed to withstand mechanical shock and vibration and to operate in ambient temperatures up to 100°C.
The commercial Type is V243A/2FS.

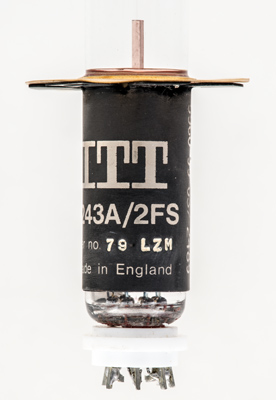

The base is integral to the product.

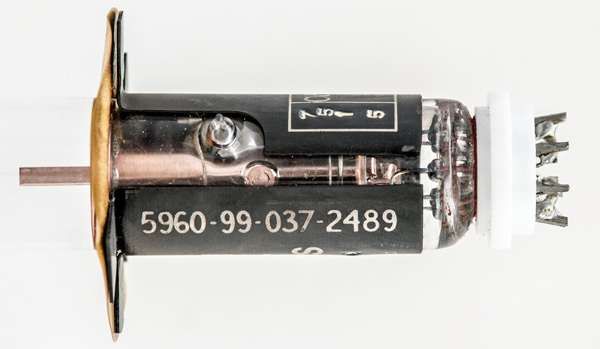

The resonator connection disc on the left. The heat dissipating shield is a standard attachment.

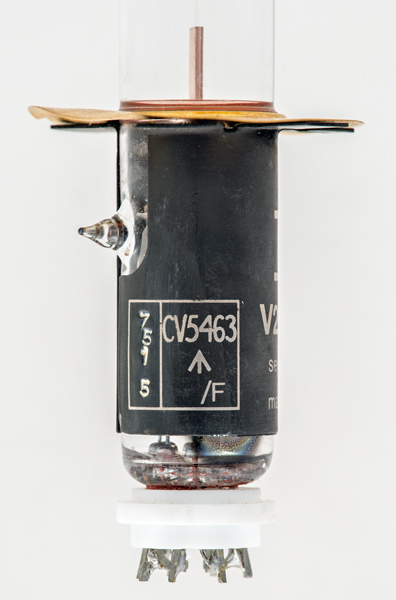

Another view.

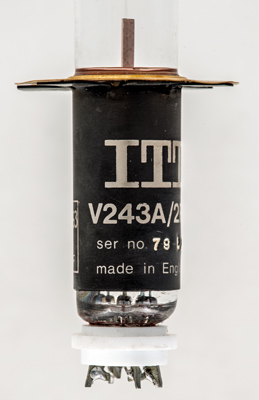

The thin glass tube envelope is 19 mm in diameter and, excluding the base pins, is 63 mm tall.
Reference: Data-sheet.


Absolute Maximum Operating Conditions
Heil Tube
Thanks to Frank Philipse for supplying the above PDF datasheet.
