CV2573

Sensibly equivalent to:
5651WA 5651 CV449 CV4048 CV5186
See also:
SQ Voltage reference tubes

Extras ▼

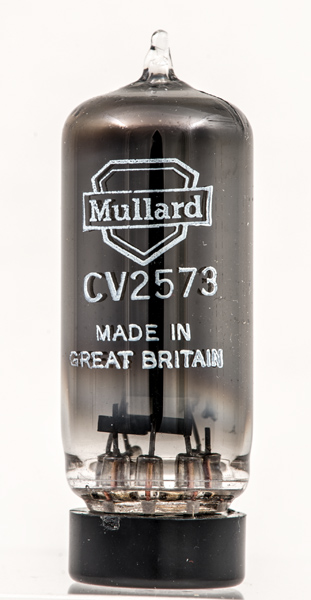

The CV2573 is a small, special quality voltage reference designed for use in stabilised DC power supplies.
The striking voltage is 115 Volts and the maintaining voltage is 86 Volts. For a tube current variation of 1.5 mA to 3.5 mA. The low current rating is typical of a voltage reference tube that is not designed to supply current to a controlled stage. The current would be kept as constant as possible to maintain the exact operating voltage.
The internal coating prevents light from altering the operating point.

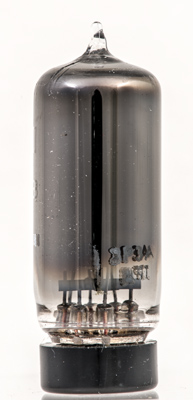

The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins, is 45 mm long.
References: Data-sheet



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
ic
k
a
ic
k



Absolute Maximum Operating Conditions
Stabiliser
Va
86
Thanks to Frank Philipse for supplying the above PDF datasheet.
