CV6135Sensibly equivalent¶ to:
|
|
|

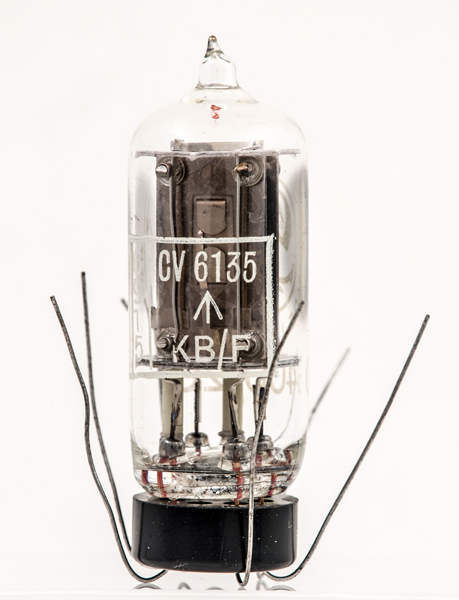

The CV6135 is a voltage stabiliser that dates to 1957.The commercial Type is the G400/2G.The KB/F identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the F identifies the maker as STC, Paignton.The thin glass tube envelope is 18 mm in diameter and, excluding the B7G/F wires, is 46 mm tall.References: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |  nc | k | nc | a | nc | a(p) | nc |
|
|
Absolute Maximum Operating Conditions¶
Stabiliser | Vh | Ah | Va | mAa |
| - | - | 306 | 2.0 - 4.0 |
|
Updated March 05, 2025.
|
|
