CV2347

Sensibly equivalent to:
5B/258M
See also:
Beam Tetrodes and the 807 - STC 5B/254M, 5B/255M, 5B/257/M & 5B/258M Advert - STC 5B/254M, 5B/255M, 5B/257/M & 5B/258M Advert

Extras ▼

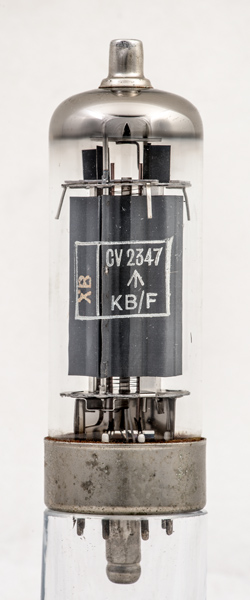

The CV2347 (equivalent to the commercial 5B/258M) miniature beam tetrode was designed to have the same ratings as the classic 807 but with a 300 mA heater for series connection.
The KB/F identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the F identifies the maker as STC, Paignton.
The adverts show the family of 807 replacements based on this design.
The wide glass tube envelope is 29 mm in diameter and, excluding the B8B base pins, is 86 mm tall.
References: Data-sheet & 1040. Type CV2347 was first introduced in 1955. See also 1955 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
tc
h
k,bp
g2
k,bp
g1
g1
k,bp
h
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
Pdriv
Pdiss
Pout
freq
19
0.3
600
250
-45
100
8
0.3W
25W
40W
60MHz
Thanks to Frank Philipse for supplying the above PDF datasheet.
