The CV1432 is a gas filled photocell based on the commercial GS26.

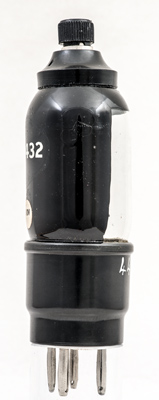

The screw top cap and wide plastic cap was essentially replaced by the mid 1930s with the top-hat style of top cap.

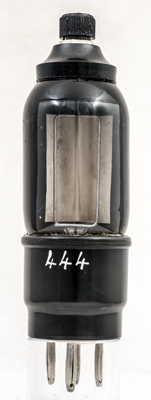

The internal black paint covers all areas except the receiving window.

The coated cathode is a single plate folded in the centre. The anode is a wire rectangle mounted in front of the cathode.

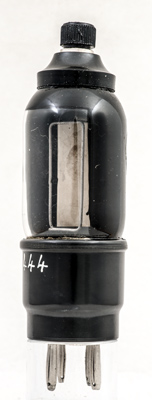

Side view showing the positioning of the anode in front of the cathode.

The wide glass tube envelope is 35 mm in diameter and, excluding the B4 base pins, is 102 mm tall.

Reference: Data-sheet.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
