CE31V

Sensibly equivalent to:
9104D
See also:
Cetron CE-31-VD Box

Extras ▼



The CE31V is a photocell designed to have maximum sensitivity in the visible region.

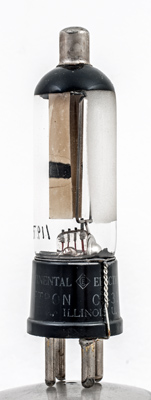

The photo-cathode hangs from the top cap connection and the anode wire ring connects via the base pins.

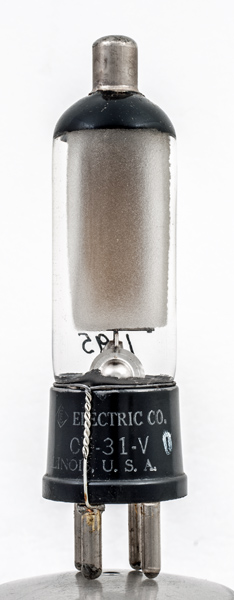

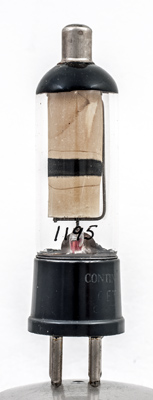

The front of the glass has been ground to diffuse the incident light. The rectangular wire ring is the anode and the cathode is the half cylinder on the right.

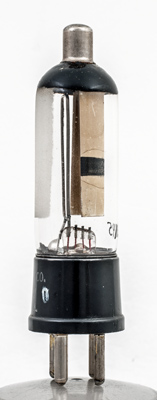

The back of the photo-cathode.
Cetron is the trade name of Continental Electronics of Illinois.
The wide glass tube envelope is 25 mm in diameter, and excluding the UX4 base pins is 92 mm tall.
Reference: Observation.



Updated May 08, 2019.
shape:wide.glass.tube construction:pinch type:photocell base:ux4 pins:4 pin:
