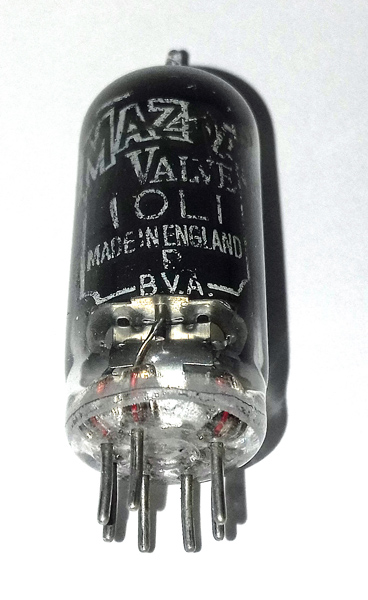

The 10L1 is a single screened triode. Few details exist about this valve and no record can be found in the Mazda catalogues we hold.Thanks to Mark Mallison for sending the image.The thin glass tube envelope is mm in diameter, and excluding the B7G base pins is mm tall.Reference: 1040. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |  g1 | k | h | h | k | g1 | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm | μ |
| 19.0 | 0.1 | 250 | -1.5 | 10.0 | 10,500 | 8.5 | |
|
