VS16

Sensibly equivalent to:
925 CE30V NU30V R61AV R64AV
See also:
1957 Cintel Brochure

Extras ▼



The VS16 is a cold cathode photocell. The operating voltage is 100 Volts.
The semi circular cathode with the wire anode in front.
Thanks to Mark Mallison for sending these images.

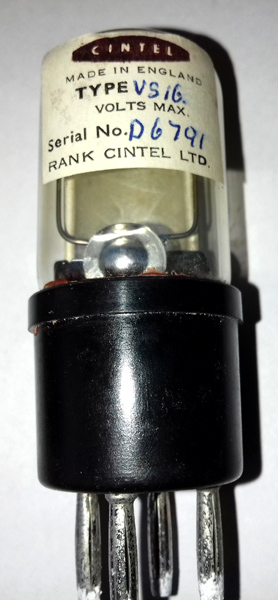

The wide glass tube envelope is 25 mm in diameter, excluding the B4 base pins, is 56 mm tall.
Reference: 4093.



Updated October 12, 2019.
shape:wide.glass.tube construction:all.glass type:photocell age:1940.1950 base:b4 pins:4 pin:
