The D42 is a single signal diode designed as a second detector or as an AGC rectifier in superhet receivers.

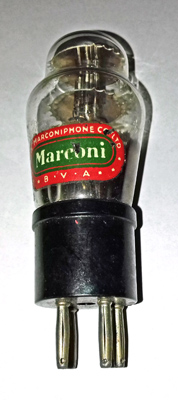

The Marconi brand label on this M-OV product.

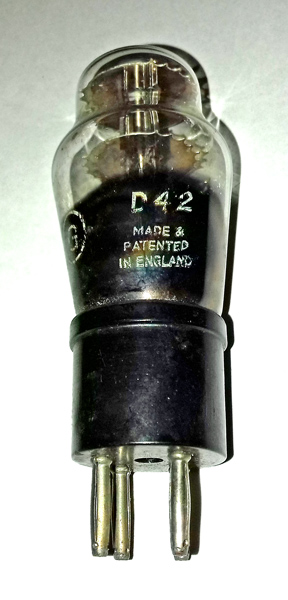

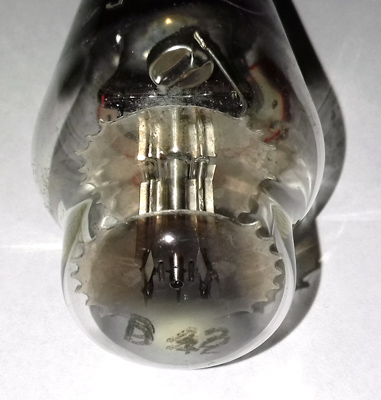

The dome carries the Type designation. The cathode can be seen as a round tube.
Thanks to Mark Mallison for sending the images.
The classic envelope is 29 mm in diameter, and excluding the B4 base pins is 79 mm tall.
Reference: Data-sheet. Type D42 was first introduced in 1936.



Pin Connections
B4
1
2
3
4
a
k
h
h



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
4.0
0.6
75
15.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
